SPORE LEDLab

LEDLab is a tool for streaming animations to LED matrices connected to SPORE nodes. Create visual effects with real-time parameter control and individual node management.

Features

• Multi-Node Management: Control multiple SPORE nodes individually
• Real-Time Preview: See live canvas preview for each node
• Dynamic Presets: Choose from 10+ built-in animation presets
• Live Parameter Control: Adjust animation parameters in real-time
• Auto-Discovery: Automatically discovers SPORE nodes on the network
• Modern UI: Clean, responsive interface with dark/light theme support

Architecture

Server

The Node.js server provides the backend for SPORE LEDLab:

• UDP Discovery: Listens on port 4210 to automatically discover SPORE nodes
• WebSocket API: Real-time bidirectional communication with the web UI
• Preset Management: Manages animation presets with configurable parameters
• Multi-Node Streaming: Streams different presets to individual nodes simultaneously
• Frame Generation: Generates animation frames at configurable FPS (1-60)
• Node State Management: Tracks configuration and streaming state per node

Web UI

The web interface provides an intuitive control panel:

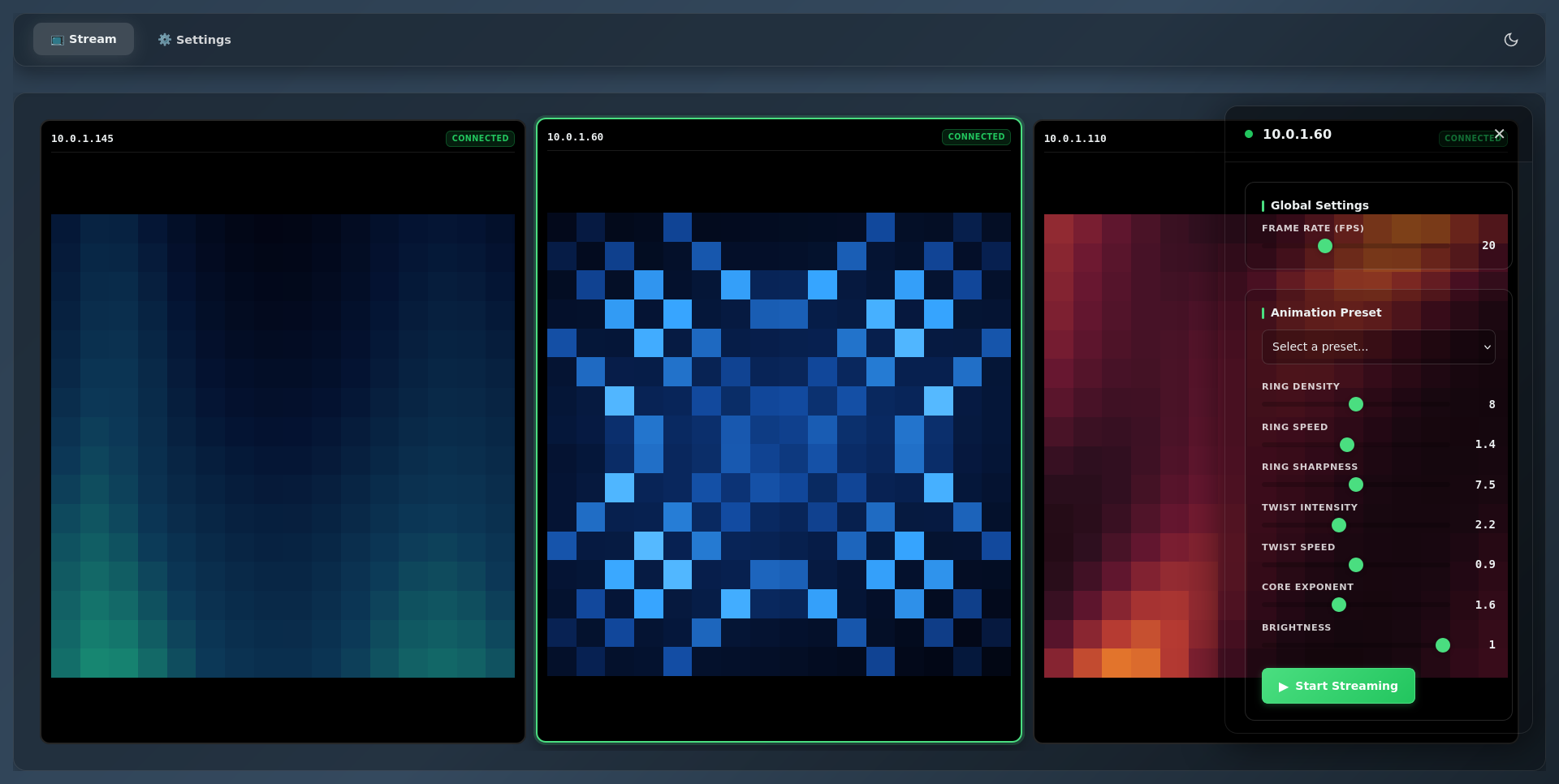

• Node Grid View: Visual grid showing all discovered nodes with live canvas previews
• Node Selection: Click any node to open its control panel
• Preset Selection: Choose from available animation presets
• Parameter Controls: Real-time sliders and inputs for preset parameters
• Matrix Configuration: Configurable matrix dimensions (default: 16x16)
• Settings Panel: Test frames and matrix clearing utilities
• Theme Support: Toggle between dark and light themes

Communication Flow

Web UI (Browser) <--WebSocket--> Server <--UDP--> SPORE Nodes
                                   |
                              Preset Engine
                                   |
                          Frame Generation (60fps)

Build

Prerequisites

• Node.js (v14 or higher)
• npm (v6 or higher)

Installation

1. Clone the repository or navigate to the spore-ledlab directory:

cd spore-ledlab

2. Install dependencies:

npm install

This will install:

• express: Web server framework
• ws: WebSocket library for real-time communication

Project Structure

spore-ledlab/
├── server/              # Backend server
│   ├── index.js        # Main server & WebSocket handling
│   └── udp-discovery.js # UDP node discovery
├── presets/            # Animation preset implementations
│   ├── preset-registry.js
│   ├── base-preset.js
│   ├── rainbow-preset.js
│   ├── lava-lamp-preset.js
│   └── ...
├── public/             # Frontend web UI
│   ├── index.html
│   ├── scripts/       # JavaScript modules
│   └── styles/        # CSS stylesheets
└── package.json       # Project dependencies

Run

Start the Server

npm start

Or use the dev script (same as start):

npm run dev

The server will:

• Start the HTTP server on port 3000
• Initialize WebSocket server
• Begin UDP discovery on port 4210
• Serve the web UI at http://localhost:3000

Access the Web UI

Open your browser and navigate to:

http://localhost:3000

Configure SPORE Nodes

Ensure your SPORE nodes are:

1. Connected to the same network as the LEDLab server
2. Running firmware with PixelStreamController support
3. Listening on UDP port 4210

The nodes will automatically appear in the LEDLab grid view once discovered.

Usage

Basic Workflow

1. Discover Nodes: Wait for SPORE nodes to appear in the grid (auto-discovery runs every 5 seconds)

2. Select a Node: Click on any node in the grid to open the control panel

3. Choose a Preset: Select an animation preset from the dropdown menu

4. Adjust Parameters: Use sliders and inputs to modify animation parameters in real-time

5. Start Streaming: Click "Start Streaming" to begin sending frames to the selected node

6. Stop Streaming: Click "Stop Streaming" to halt the animation

Available Presets

• Rainbow: Classic rainbow cycle effect
• Lava Lamp: Organic flowing blobs
• Aurora Curtains: Northern lights simulation
• Bouncing Ball: Physics-based bouncing ball
• Circuit Pulse: Digital circuit patterns
• Meteor Rain: Falling meteor trails
• Nebula Drift: Cosmic cloud effects
• Ocean Glimmer: Wave-like shimmer
• Spiral Bloom: Rotating spiral patterns
• Voxel Fireflies: 3D particle system
• Wormhole Tunnel: Depth tunnel effect
• Fade Green-Blue: Simple color fade

Matrix Configuration

Default matrix size is 16x16 pixels. To change:

1. Click the ⚙️ Settings button
2. Navigate to the Settings view
3. Adjust Width and Height values
4. Click "Apply Changes"

Testing

In the Settings view:

• Send Test Frame: Sends a checkerboard pattern to verify connectivity
• Clear Matrix: Turns off all LEDs on the selected node

Configuration

Server Configuration

Edit server/index.js to modify:

const PORT = 3000;           // HTTP/WebSocket port
const UDP_PORT = 4210;       // UDP discovery port
const DEFAULT_FPS = 20;      // Default frame rate
const MATRIX_WIDTH = 16;     // Default matrix width
const MATRIX_HEIGHT = 16;    // Default matrix height

Adding Custom Presets

1. Create a new preset file in presets/:

const BasePreset = require('./base-preset');

class MyCustomPreset extends BasePreset {
  constructor(width, height) {
    super(width, height);
    this.name = 'My Custom Preset';
    this.description = 'Description of my preset';
  }

  defineParameters() {
    return {
      speed: { type: 'range', min: 0.1, max: 5, step: 0.1, default: 1 },
      color: { type: 'color', default: 'ff0000' }
    };
  }

  update(frameCount) {
    // Animation logic here
  }
}

module.exports = MyCustomPreset;

2. Register it in presets/preset-registry.js:

const MyCustomPreset = require('./my-custom-preset');

registerPreset('my-custom', MyCustomPreset);

Troubleshooting

Nodes Not Appearing

• Verify nodes are on the same network
• Check firewall settings allow UDP port 4210
• Ensure nodes are running PixelStreamController firmware

WebSocket Connection Issues

• Check browser console for errors
• Verify server is running on port 3000
• Try refreshing the browser

Animation Not Streaming

• Select a node first by clicking on it
• Choose a preset from the dropdown
• Verify the node shows "streaming" status

Technology Stack

Backend:

• Node.js
• Express.js (HTTP server)
• ws (WebSocket server)
• UDP (Node discovery and frame streaming)

Frontend:

• Vanilla JavaScript (ES6+)
• Component-based architecture
• CSS3 with CSS variables for theming
• Canvas API for visualization

License

MIT

Credits

Based on the SPORE framework and uses styling/components from spore-ui.
