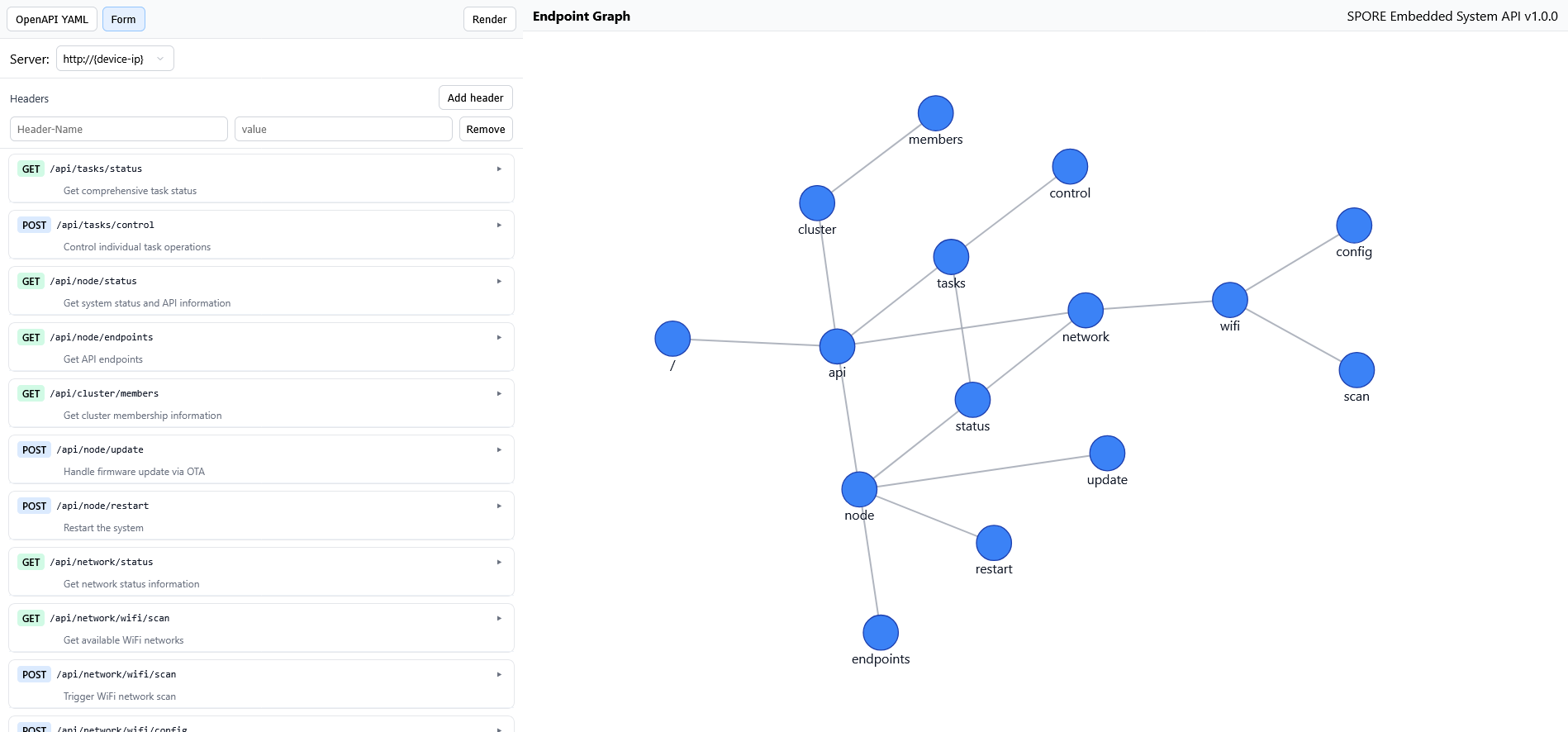

Visualizes all API endpoints as a force-directed graph using D3.js
Nodes represent URL path segments (e.g., /api/test/bla creates nodes: / → api → test → bla)
Left-to-right layout shows the hierarchy of your API structure
Hover over nodes to highlight connected links
Click nodes to:
- Jump to the endpoint in the YAML editor (when on YAML tab)
- Expand the operation form (when on Form tab)

🧪 API Testing Interface

Form-based interface for testing each endpoint
Server selection dropdown populated from OpenAPI servers field
Custom headers support - add any HTTP headers you need
Automatic form generation based on:
- Path parameters ({param})
- Query parameters
- Request body (JSON) for POST/PUT/PATCH requests
Collapsible operation cards (collapsed by default)
Response display in formatted JSON

🔄 Backend Proxy

Node.js backend acts as a proxy to call your target servers
Handles CORS and cross-origin requests
Supports all HTTP methods (GET, POST, PUT, DELETE, PATCH, etc.)

Getting Started

Prerequisites

Node.js (v16+ recommended)

Installation

Install dependencies:

npm install

Start the server:

npm start

Open your browser and navigate to:

http://localhost:3000

Usage

Load your OpenAPI spec: Paste your OpenAPI YAML specification in the left panel
Render the graph: Click the "Render" button to parse and visualize
Explore endpoints:
- Switch to the "Form" tab to test endpoints
- Select a server from the dropdown
- Expand operations to see their forms
- Add custom headers if needed
- Fill in parameters and send requests
Navigate the graph: Click nodes to jump to endpoints or expand operations

Project Structure

specgraph/
├── server.js          # Express backend with parse and proxy endpoints
├── public/
│   ├── index.html     # Main HTML structure
│   ├── styles.css     # All styling
│   ├── app.js         # Frontend logic (tabs, forms, YAML editor)
│   └── graph.js       # D3.js graph rendering and interactions
└── package.json       # Dependencies and scripts

API Endpoints

`POST /api/parse`

Parses OpenAPI YAML and returns graph structure, operations, and servers.

Request:

{
  "yaml": "openapi: 3.0.0\n..."
}

Response:

{
  "graph": {
    "nodes": [...],
    "links": [...],
    "endpoints": [...],
    "operations": [...]
  },
  "info": {
    "title": "API Title",
    "version": "1.0.0"
  },
  "servers": ["https://api.example.com"]
}

`POST /api/proxy`

Proxies HTTP requests to target servers.

Request:

{
  "baseUrl": "https://api.example.com",
  "method": "GET",
  "path": "/users/123",
  "query": {"filter": "active"},
  "headers": {"Authorization": "Bearer token"},
  "body": {...}
}

Technologies

Frontend: Vanilla JavaScript, D3.js v7, CodeMirror 5
Backend: Node.js, Express 4
Dependencies:
- express - Web server
- js-yaml - YAML parsing
- node-fetch - HTTP proxy requests

Features in Detail

Graph Visualization

Force-directed layout with left-to-right hierarchy
Nodes avoid overlapping with unrelated links
Smooth animations and drag-to-reposition
Zoom and pan support

Form Generation

Automatically detects path parameters and generates inputs
Extracts query parameters from OpenAPI spec
Supports JSON request bodies for appropriate methods
Collapsible UI keeps the interface clean

YAML Integration

Live syntax highlighting
Auto-parse on paste
Click-to-navigate from graph to YAML
Line selection and scrolling

Example OpenAPI Spec

The app comes with a sample httpbin.org specification that demonstrates:

Multiple HTTP methods (GET, POST, PUT, PATCH, DELETE)
Query parameters
Request bodies
Path parameters

You can replace it with your own OpenAPI specification.

License

ISC
